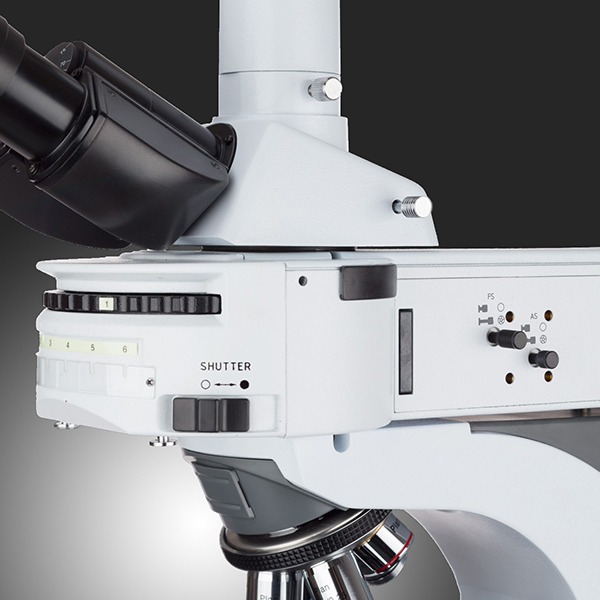

| Model | MICRO-FE5 |
| Optički sistem | Infinity-corrected sa EPI-fluorescencijom |
| Tip glave mikroskopa | Trinokularna glava pod uglom 30° |
| Vidno polje | široko vidno polje |
| Okulari | 10X |
| Podešavanje dioptrije na okularima | Da |
| Podešavanje interpupilarne distance | 48 - 75mm |
| Nosač objektiva | Nosač za 5 objektiva |
| Objektivi | Plan ahromatski DIN objektivi 4X, 10X, 20X, 40X (spring), 100X (spring, oil) |
| Nosač fluorescentih filtera | 6 mesta |
| Fluorescentni blok filteri uključeni u set | -- Ultraviolet: BP330-385nm, DM400nm, BA420nm -- Violet: BP400-410nm, DM400nm, BA420nm -- Blue: BP460-495nm, DM505nm, BA510-550nm -- Green: BP510-550nm, DM570nm, BA590nm |
| Mehaničko postolje | Dimenzije: 185mm x 145mm, min. podeok skale 1.00mm Pomeranje po XY osi: 75x55mm |
| Kondenzator | N.A. 1.25 sa iris dijafragmom, Kohler, tip - Brightfield |
| Iluminacija | Kohler halogena iluminacija |
| Sijalica | 100W HBO mercury-vapor arc-lamp + 30W halogen lamp |
| Kamera | 14 MP CMOS |
| Specifikacija kamere | • Sensor: ONSemi (color) • Sensor Type: CMOS • Sensor Size: 6.138x4.603mm • Pixel Size: 1.4µm • Resolution: 14MP • Frame Rate: 54fps @1024x822, 21fps @2048x1644, 6.2fps @4096x3286 • Sensitivity: 0.724V / Lux-sec (550nm) • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux Software Specifications: • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed |
| Napajanje | 220V, 50Hz |
